Target disk flowmeters Series DP

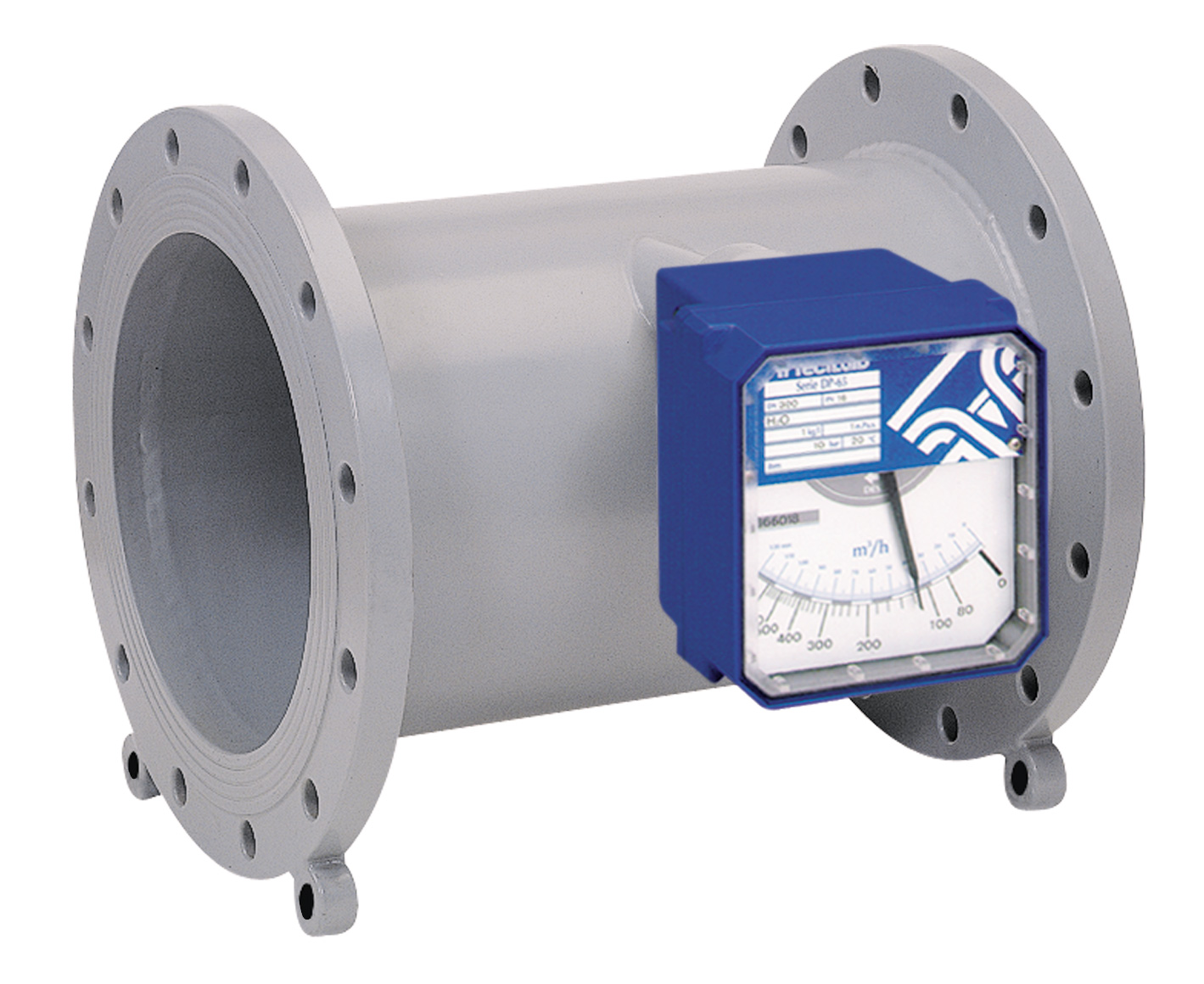

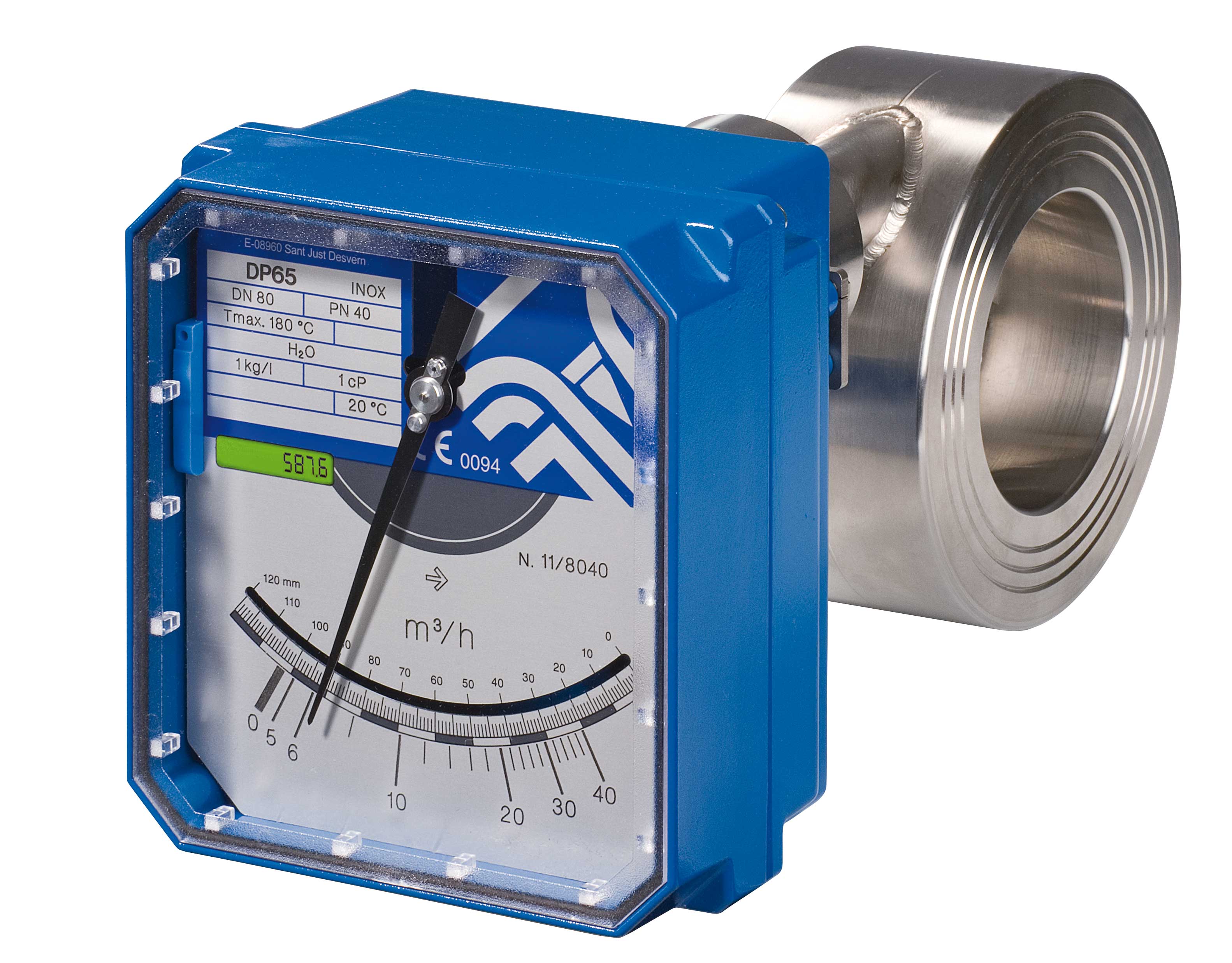

Débitmètre à cible DP65 Débitmètre à cible DP500
Application areas
Suitable for all kind of industrial processes like water treatment & distribution, Pharmaceutical, chemical and paper industry, heating and cooling circuits, swimming pools, fire protection systems, automotive industry (cutting oil, paint lines and refrigeration systems), power plants, lubrication oil circuits...
Product description
Target disk flowmeters for liquids and, for some specific applications, for gases. Metallic, simple and robust construction. Suitable for flow measurement of liquids with suspended solids and for extreme pressure and temperature conditions. Low pressure drop. Straight pipe run requirement of only 3xDN before and after the flowmeter.
Technical specifications

Available for all flow directions

Measuring range:

  • 0,8 m3/h … 1600 m3/h H2O
  • 45 Nm3/h … 24000 Nm3/h air

Accuracy:

  • DP65 model +-2,5% f.s. (+-1,6% f.s. on request)
  • DP500 model +-4,0% f.s.

Connections:

  • DP65 model DN40 … DN300 between flanges
  • DP500 model DN250 … DN500 flanged
  • Standard flange connection according to DIN 2501. Others on request.

Materials:

  • Coated steel, EN 1.4404 (SS 316L)

Housing in aluminum. Available in SS 316L or PP on request

Local indication

Options:

  • 1 or 2 adjustable switches (micro-switch or inductive sensor)
  • Design for high pressure on request
  • Electronic transmitter with 4-20 analog output for safe or hazardous area (Ex ia IIC T4 or T6 protection, ATEX certified).
  • HART ™ protocol on request
  • Local volume totalizer. Remote volume totalizer by means of pulse output (not available for Ex transmitters)
