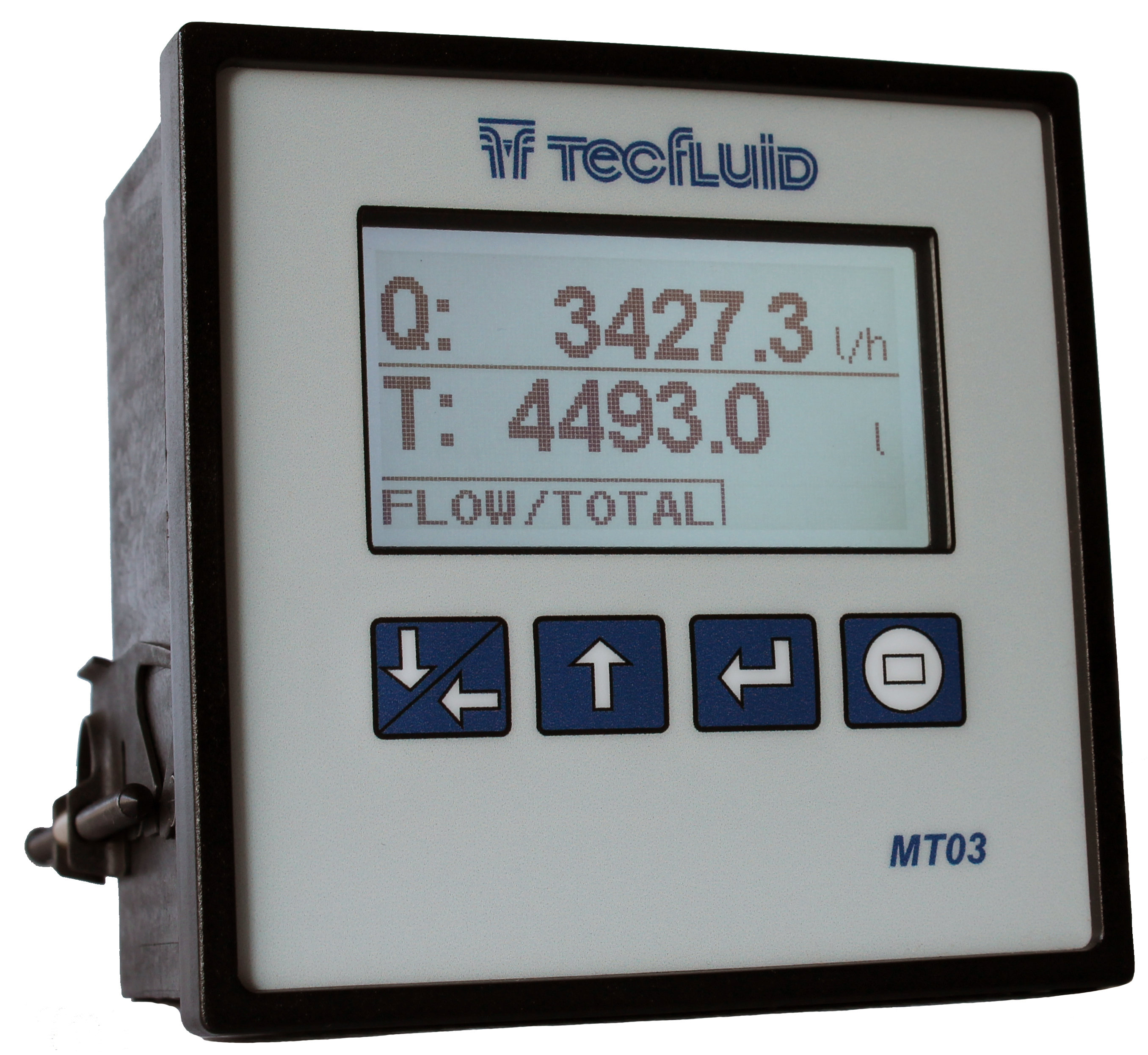

Electronic converter MT-03F

Application areas
Flow and Total indication with Preset relay outputs for batching applications.
Catalogue
Product description
The programmable MT – 03F electronic converter for flow sensors has new benefits as programming via USB cable using the Winsmeter softwarer to program the appliance or configure a data record (Datalogger). This converter is also programmable through keyboard and graphic LCD display with intuitive menus, it is designed to operate with flowmeters, meters of the TECFLUID range but also with the most sensors of the market. The reduced housing dimensions is intended to be mounted in Panel of 91 x 91 mm x 78mm.
Technical specifications

Operates with volumetric counter COVOL and turbine TM-44

Power supply : 90...265 VAC 50/60 Hz.

                         18...36 Vcc.
Consommation inférieure à 5VA avec alimentation en courant alternatif.
Fuse : 5 x 20 mm, 250 mA

Ingress protection (one time panel mounted) :
IP 30 back
IP 50 front

Display: LCD digital display with intuitive menus

Input signal

-Reed switch (COVOL)

-Pick up (TM-44)

- Pulses (others sensors)

Output signals:

-2 relay outputs

-Pulses output (input signal repeater)

-Output4-20 mA

Ambient temperature: -20ºC to +60ºC
