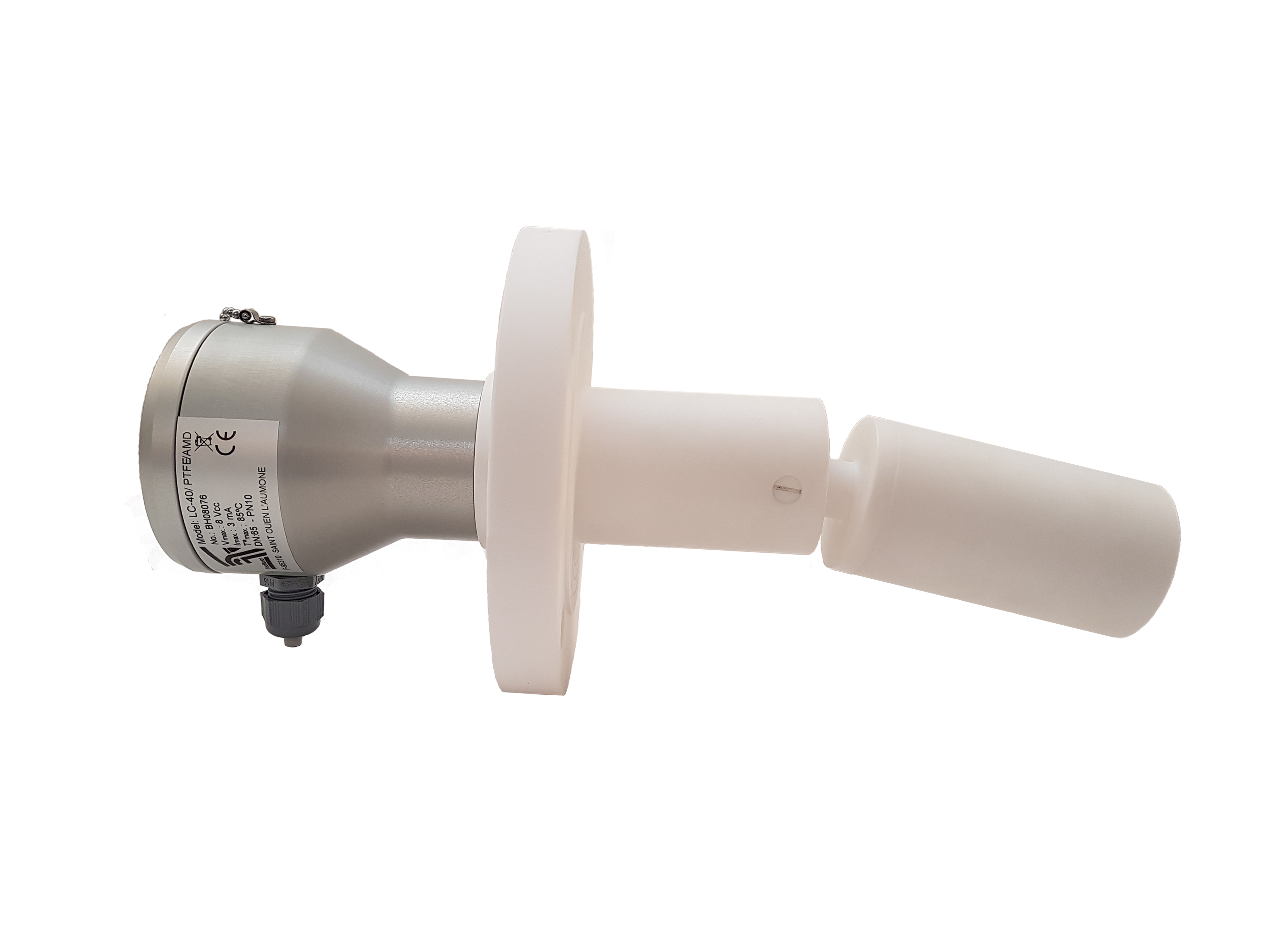

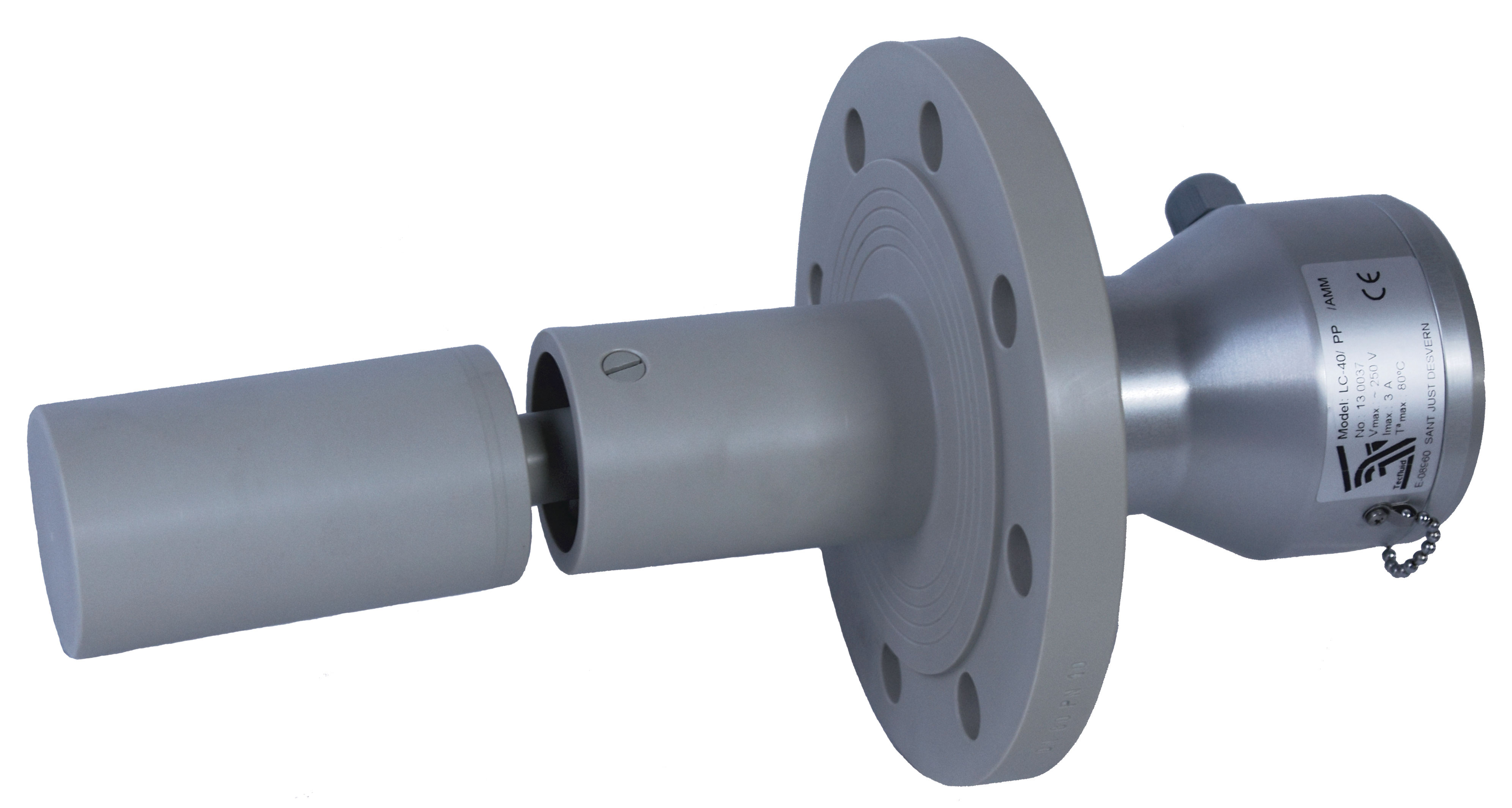

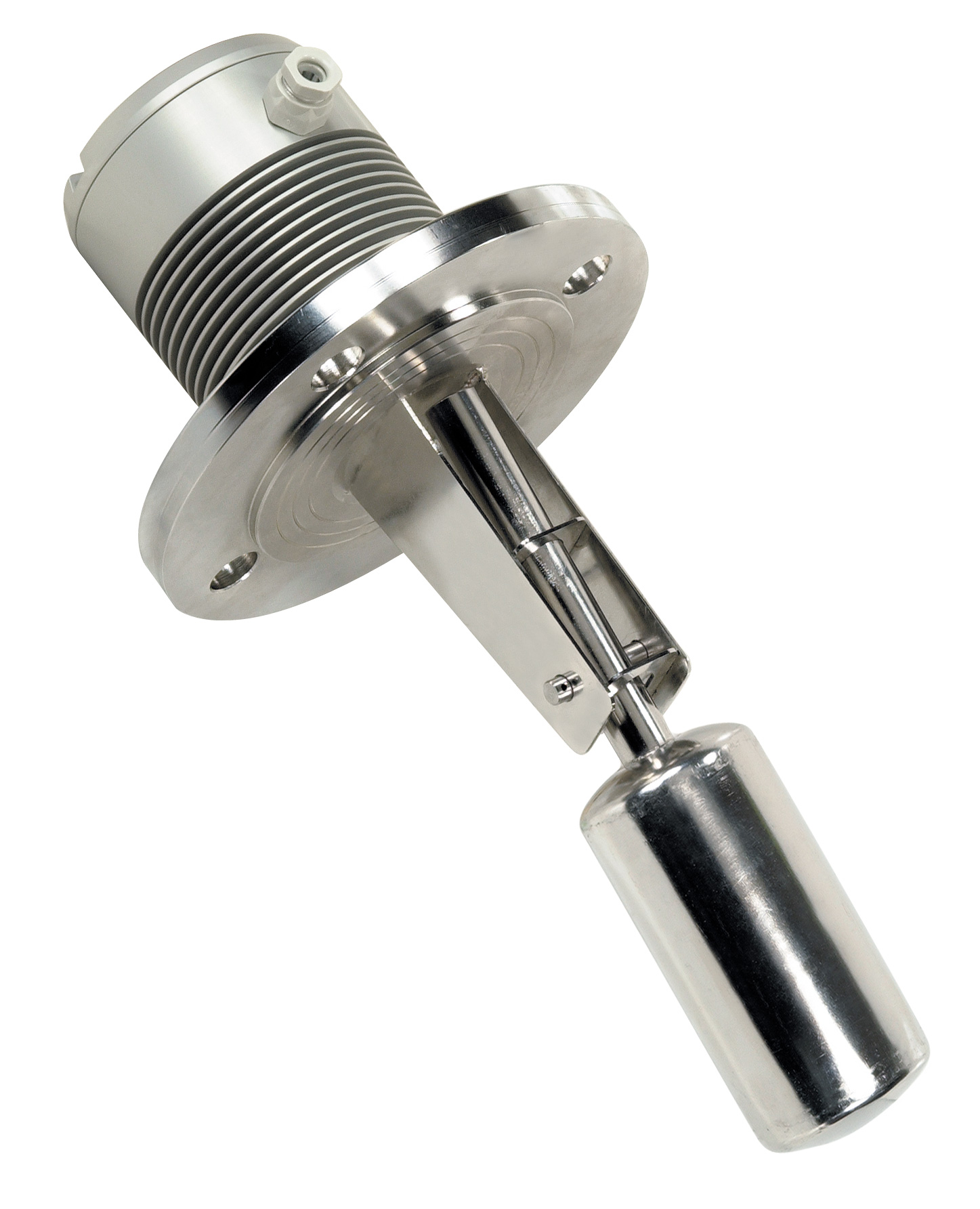

Liquid level switch by float Series LC40
Application areas
Detection level of dosing tanks. steam condensate, hot water storage, on / off pump control, maximum-minimum level control...
Product description
Liquid level switch float. Robust and reliable, versatile and easily adaptable.
Technical specifications
Detection length:
- 52 … 1100 mm
Accuracy:
- +-3 mm
Connections:
- DIN DN65 flange
- Others on demand
- Top or side mounted
Materials:
- EN 1.4404 (AISI 316L), PVC, PP, PTFE, PVDF
Level detection:

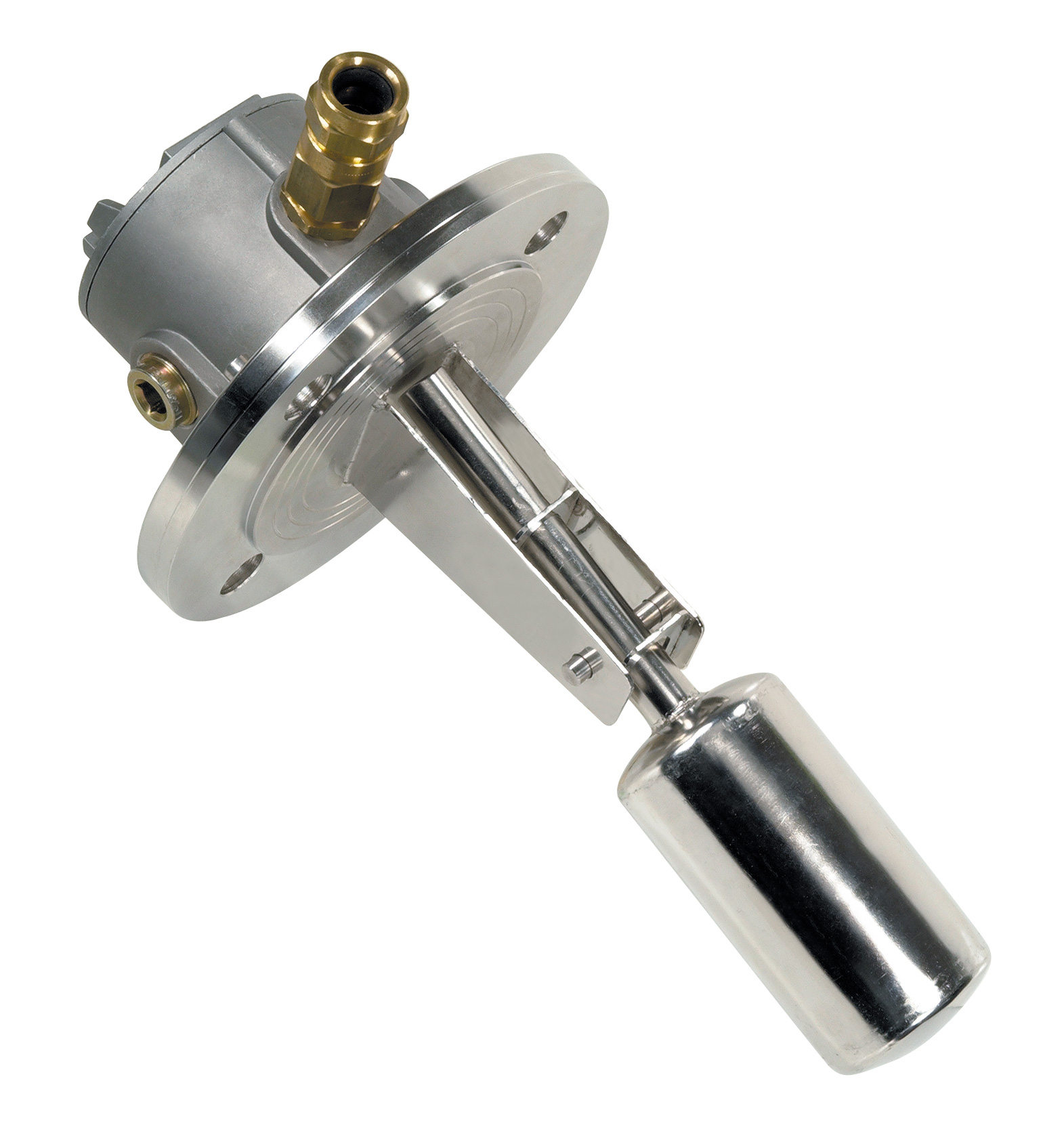

- Micro-switch contact (AMM), reed switch (AMR), pneumatic switch(AMP), inductive switch (AMD)
Options:
- Explosion proof enclosure on demand
