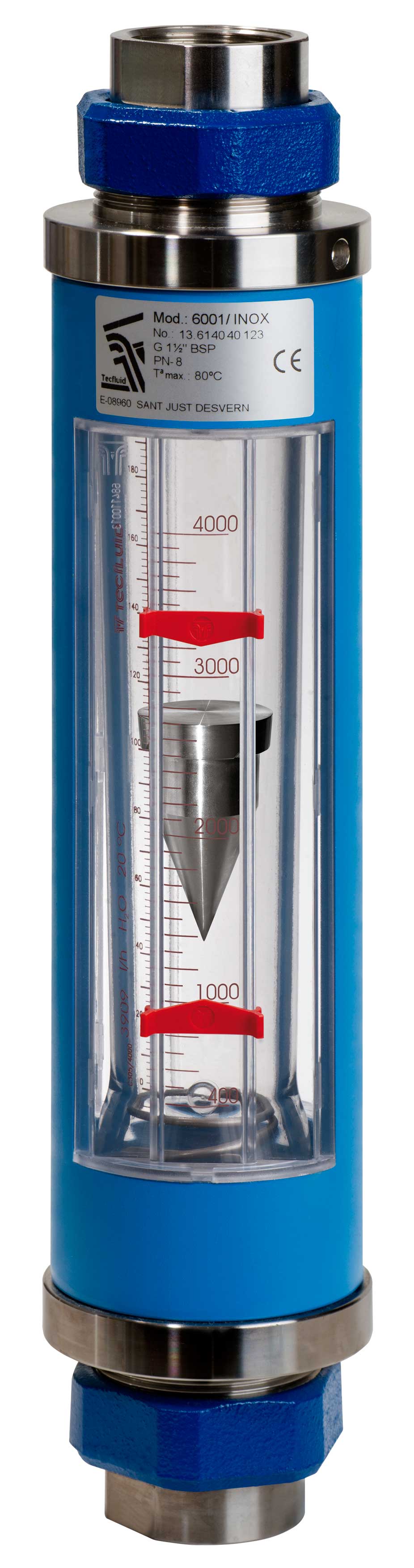

Variable area flowmeters Series 6000

Débitmètre à section variable 6001
Application areas
Suitable for all kind of industries for flow measuring.
Product description
Variable area flowmeters with glass tube. Easy installation without straight pipe run required and protected against accidental breakage.
Technical specifications

Measuring ranges:

  • 2,5 l/h … 40 m3/h H2O
  • 40 Nl/h … 1200 Nm3/h air

Accuracy:

  • +-1,6% f.s.

Connections:

  • DIN DN15 … DN80 flanges
  • Threaded fittings from ½” … 3” BSP
  • PVC solvent weld socket fittings
  • SS fittings for welding, others on request

Materials:

  • Flow tubes: borosilicate glass, length 300 mm
  • Wetted parts: Coated steel, EN 1.4404 (SS316L), PVC, PP, PTFE

Options:

  • 1 or 2 adjustable switches (reed switch, micro-switch or inductive sensor)
  • 4-20 mA transmitter (max. resolution 18 points)
  • HART ™ protocol, Profibus, Fieldbus on request
