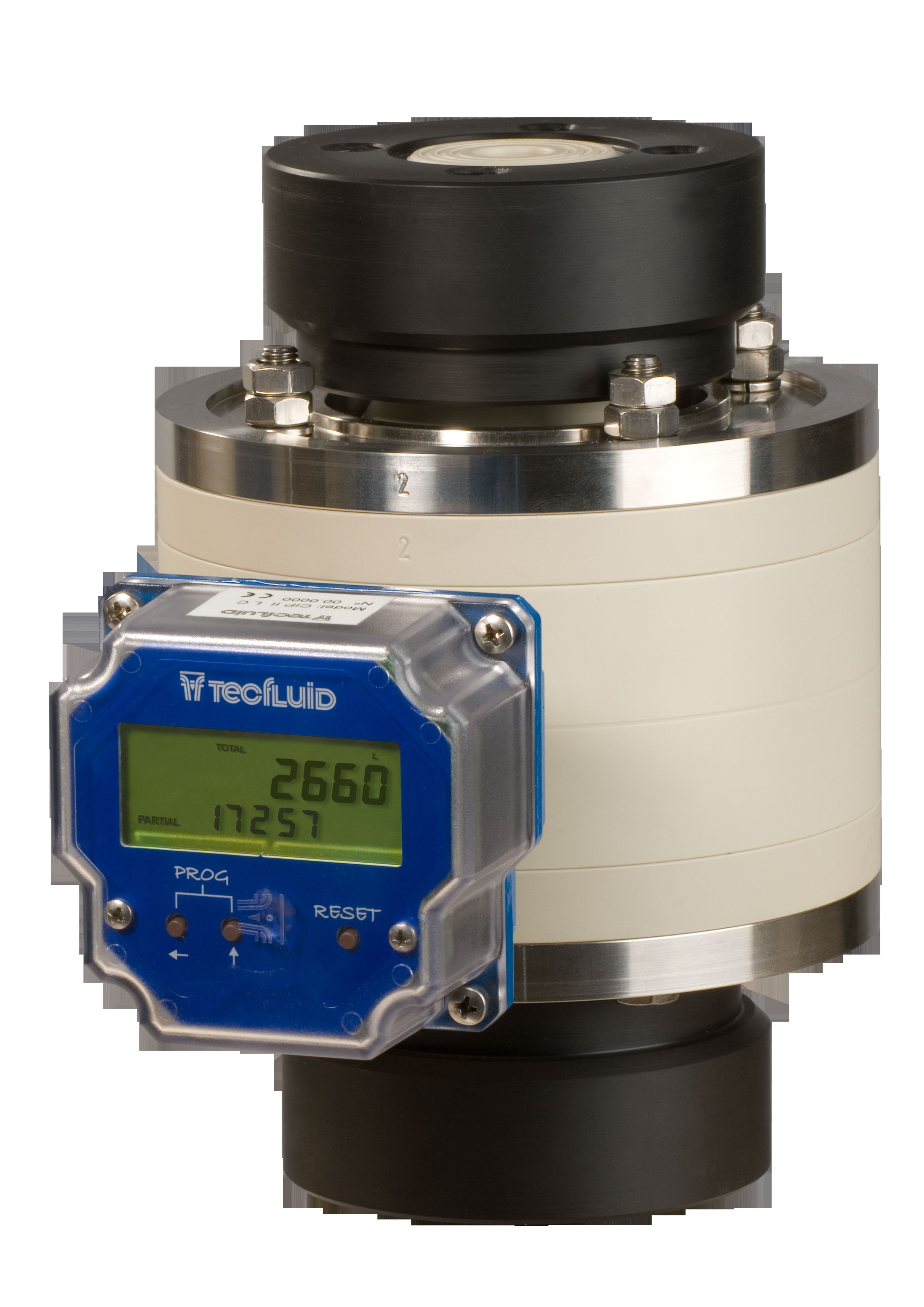

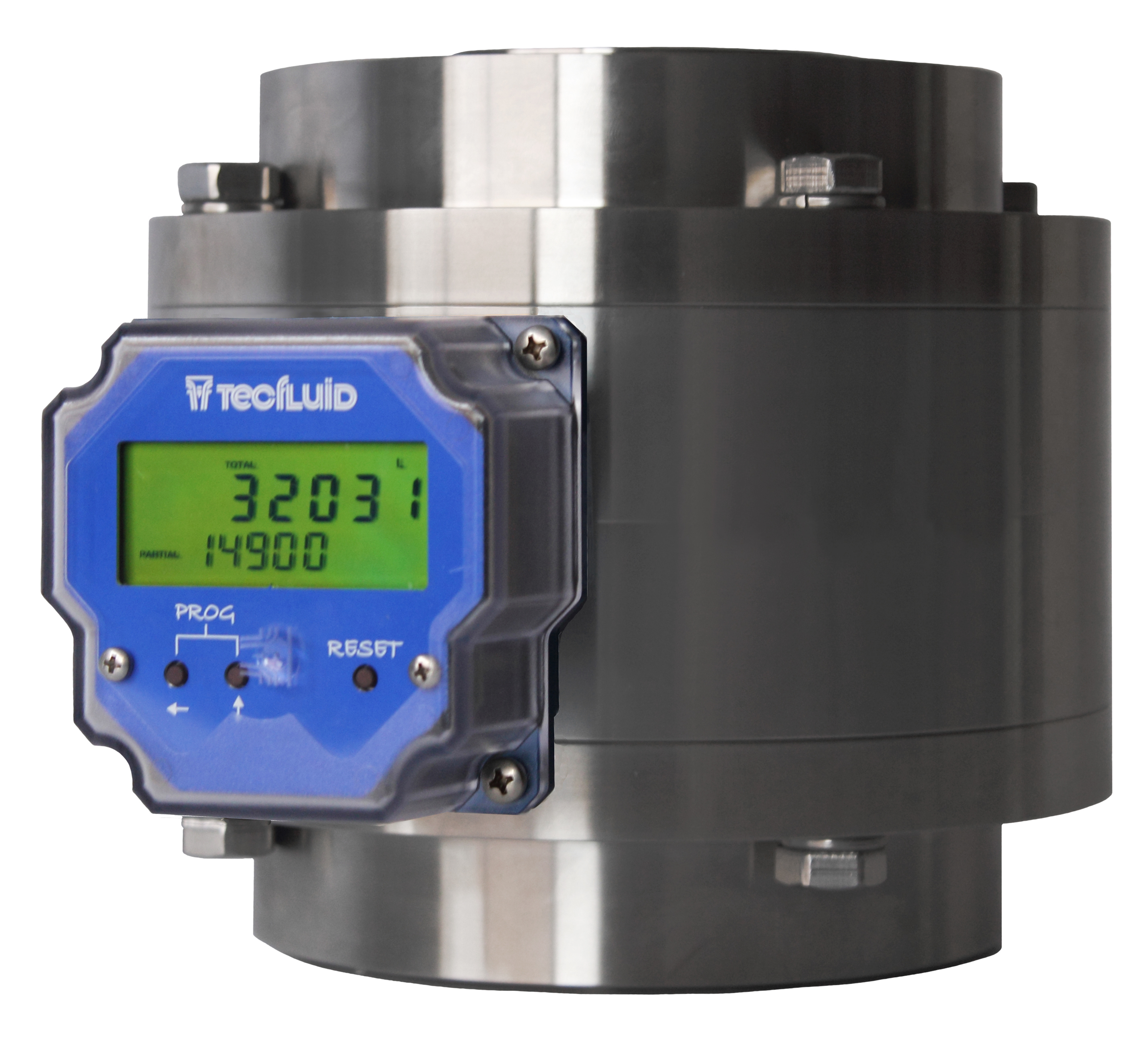

Volumetric counter Series COVOL

Application areas
Flow measuring and volume totalizer of condensate steam and fuel, tank filling… Widely used in oil industry, measurement of honey, chocolate, paint, resin, inks...
Product description
Volumetric counter for liquids, even with high viscosity up to 120000 cP, with or without electrical conductivity. It can be easily adjusted on site and is suitable for CIP processes.
Technical specifications

Measuring range:

  • 10 l/h … 60 m3/h H2O

Accuracy:

  • +-0,8%

Connections:

  • DIN2501 flanges DN10…DN100
  • Others on request
  • BPS or NPT threaded connections
  • Sanitary connections according to DIN 11851
  • Clamp ISO 2852… Others on request.

Materials:

  • Body: EN 1.4404 (SS 316L), PVC, PP & PTFE
  • Piston: PTFE-graphite, Aluminum, Bronze, PVDF

Viscosity: up to 120000 cP

Reed switch pulse output

Compatible with associated electronic converters CIP / CIP II / MC-01 / MT-02 / DFD / CI-420 / CP420R and CH420R / CP420L and CH420L

Considered as “Simple Apparatus” according to ATEX

Options:

  • Design for high pressure on request
  • Special design for converters from different manufacturers
  • Heating-cooling chamber on request
